As electronic devices become more powerful and compact, standard off-the-shelf enclosures are often no longer sufficient. High-performance electronics—such as industrial controllers, audio amplifiers, and medical devices—require robust protection, precise mounting points, and excellent thermal management.
At CNC Rapid, we specialize in manufacturing custom CNC Machined Aluminum Housings. By milling enclosures directly from solid aluminum blocks, we give hardware engineers complete design freedom.
Let’s take a closer look at a recent custom chassis project that perfectly demonstrates the advantages of CNC machining.
The “Machined from Solid” Advantage
Unlike sheet metal bending or plastic injection molding, CNC machining an enclosure from a solid billet of Aluminum 6061 or 7075 offers unparalleled structural rigidity.
This solid construction acts as a natural Faraday cage, providing excellent EMI/RFI shielding to protect sensitive internal PCBs from electromagnetic interference.
Precision Thin-Wall Machining

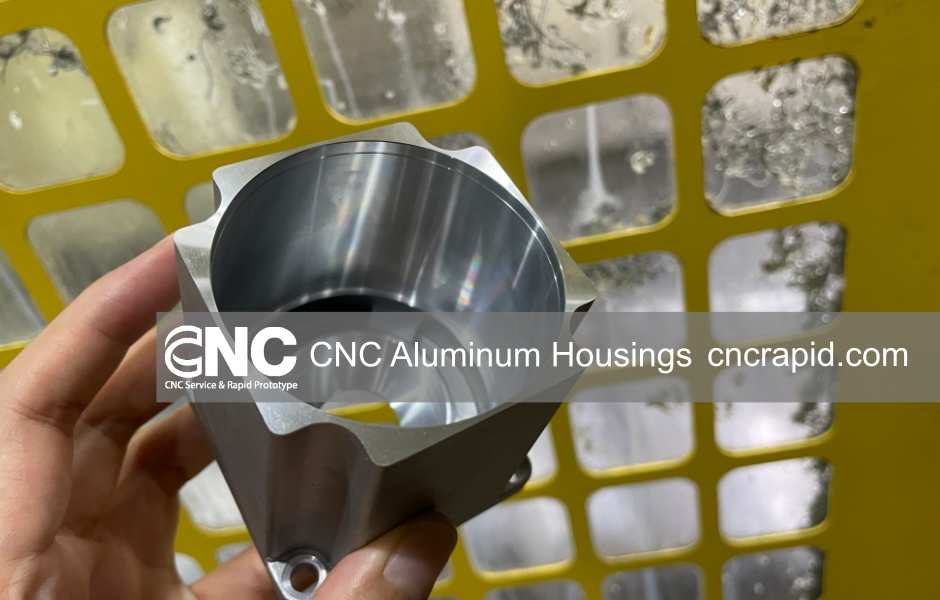

Looking at the internal cavity of this housing, you can see how much material has been removed. Milling deep pockets while leaving a thin exterior wall is a major manufacturing challenge.
- Vibration Control: Thin walls are prone to vibration (chatter) during the cutting process. We utilize high-speed dynamic milling strategies and sharp carbide tooling to gently remove material without warping the delicate walls.
- Maximum Internal Volume: This allows our clients to pack more electronic components into a smaller overall footprint without sacrificing the external strength of the housing.
Integrated I/O Ports and PCB Standoffs
One of the biggest headaches in electronic assembly is ensuring all the connectors align perfectly with the case.
- Side Port Cutouts: As seen on the side walls, we machined precise rectangular and circular cutouts for USB ports, power jacks, and network connectors. Multi-axis CNC milling ensures these ports are positioned with absolute accuracy.
- Integrated Standoffs: Instead of pressing in separate threaded inserts (which can spin or pull out), we milled the PCB mounting standoffs directly into the floor of the housing. This guarantees perfect alignment and a secure, vibration-proof mount for your circuit boards.
Built-In Thermal Management: Cooling Fins
High-performance processors generate heat that must be dissipated to prevent thermal throttling.
Notice the ridged pattern along the bottom outer edge of this chassis? Those are Integrated Cooling Fins. By machining these grooves directly into the enclosure, the entire aluminum body acts as a massive, highly efficient heatsink. Heat transfers directly from the PCB standoffs into the chassis and dissipates through the fins, completely eliminating the need for internal cooling fans.
Premium As-Machined Finish
Finally, take a look at the floor of the internal cavity. The highly uniform, sweeping lines are our signature As-Machined Finish. This flawless tool path pattern is the result of perfectly trammed machine spindles and rigid setups.
While we offer premium surface treatments like Bead Blasting and Anodizing (in Black, Silver, Blue, Red, etc.), the pristine raw machined surface proves the foundational quality of the part.
Start Your Custom Enclosure Project
Stop compromising your hardware design to fit into a generic plastic box.
Whether you need a single prototype for testing or a production run shipped internationally—to the US, Australia, Europe, or beyond—CNC Rapid is your trusted manufacturing partner.
Ready to build a better box?
Upload your 3D CAD files (STEP/IGES) today. Our engineering team will review your design for manufacturability (DFM) and provide a fast, competitive quote.
