In the world of high-performance electronics—whether for 5G telecommunications, automotive controllers, or industrial automation—the housing is not just a protective shell. It is a critical component that ensures structural rigidity, grounding, and thermal management.
One of the most challenging aspects of manufacturing a custom Electronic Housing Base is creating reliable mounting points for the PCB. While some manufacturers rely on pressed-in inserts, at CNC Rapid, we specialize in machining Integrated Standoffs directly from the solid material.
In this case study, we explore the manufacturing details of a precision aluminum base featuring complex, hollow mounting bosses.
The Superiority of Integrated Standoffs

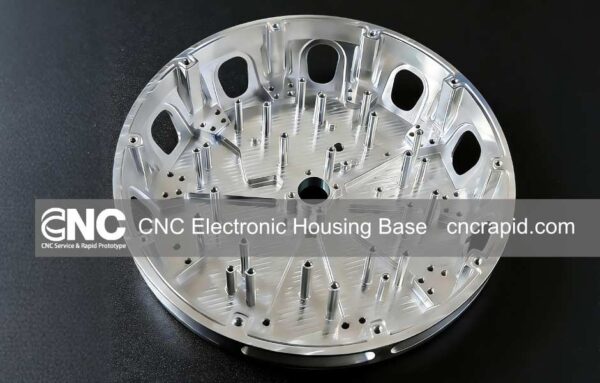

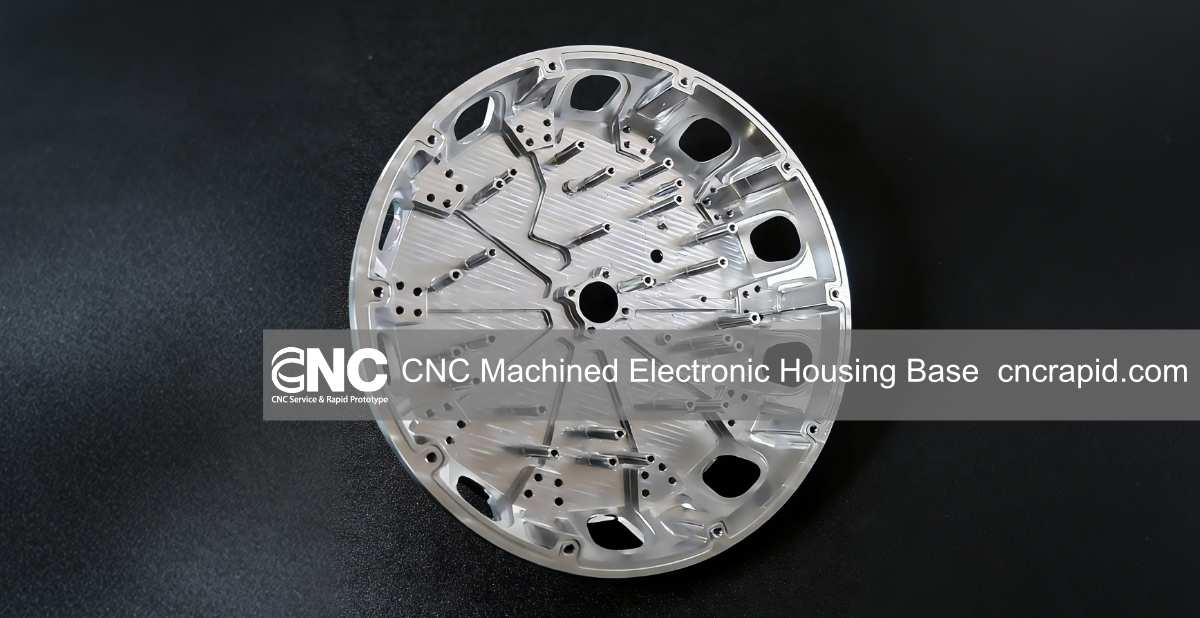

The component shown above features a dense array of hollow cylindrical bosses (also known as standoffs). Unlike standard enclosures that use pressed-in steel nuts (PEM nuts), these mounting points are CNC milled directly from the aluminum block.
Why choose an Electronic Housing Base with integrated standoffs?
- Structural Integrity: There is no risk of the nut spinning or pulling out during assembly. The standoff is one solid piece with the base.
- Accuracy: The position of every hole is determined by the CNC machine’s coordinate system, ensuring perfect alignment with the PCB mounting holes.
- Thermal & Electrical Conductivity: Being one continuous piece of aluminum, these standoffs act as excellent thermal bridges, conducting heat from the PCB components down into the main base for dissipation.
The Manufacturing Challenge: Concentricity & Wall Thickness
Machining these tall, hollow features is far more difficult than machining solid pins.
- The Challenge: The drill or boring tool must be perfectly aligned with the outer milling path. Any deviation (run-out) would result in uneven wall thickness. If the wall is too thin on one side, it will crack when the screw is tightened.
- Our Solution: We perform the external contouring and internal drilling in the same CNC setup. By using high-precision tooling and minimizing part handling, we guarantee that the internal hole is perfectly concentric with the outer cylinder.
Perfect Flatness for Thermal Management
For an Electronic Housing Base, the bottom surface usually interfaces with a cold plate or heat sink. Therefore, flatness is non-negotiable.

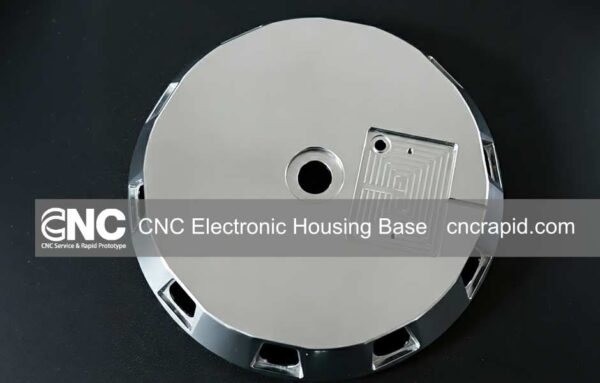

The back of this part (shown above) showcases our signature As-Machined Finish.
- Visual Quality: The uniform circular tool paths are a testament to our rigid machine setup and balanced spindle. This “industrial aesthetic” is highly sought after in high-end equipment.
- Technical Spec: We achieved a flatness tolerance of 0.01mm across the entire surface. This ensures maximum contact area for thermal transfer, eliminating hot spots in your electronic assembly.
Material Selection: Aluminum 6061-T6
We manufactured this base using Aluminum 6061-T6, the preferred choice for custom electronic enclosures.
- Machinability: Allows for the creation of thin walls and complex hollow features without deformation.
- Protection: It provides natural EMI/RFI shielding to protect sensitive circuits.
- Finishing: This alloy is ideal for anodizing (Clear or Black) or SurTec 650 chromating to maintain conductivity while preventing corrosion.
Partner with CNC Rapid for Your Enclosures
Are you designing a rugged Electronic Housing Base that requires tight tolerances and robust mounting points? Don’t compromise with off-the-shelf enclosures that require secondary modification.
From integrated hollow standoffs to complex thermal geometries, our team has the expertise to machine your parts from solid aluminum with speed and precision.
Ready to start? Get a Free Quote Today! Upload your STEP/IGES files today for a comprehensive DFM review and a competitive quote.
