Project Description
In hydraulic, pneumatic, and plumbing systems, a single leaking connection can cause system failure. That is why engineers and manufacturers rely on high-quality Custom Brass Fittings that are machined to exact specifications.
At CNC Rapid, we don’t just produce standard off-the-shelf parts. We specialize in manufacturing complex, custom-designed brass connectors, adapters, and valve bodies that ensure a perfect, leak-proof fit for your specific application.

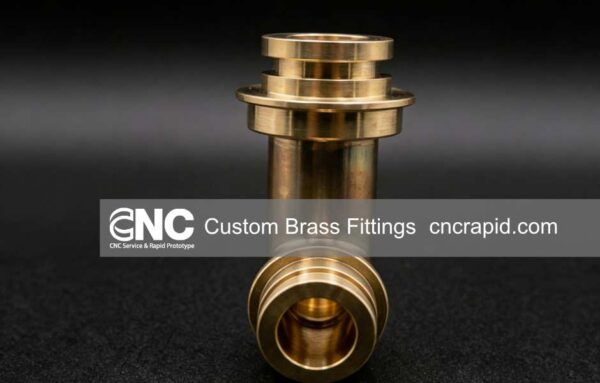

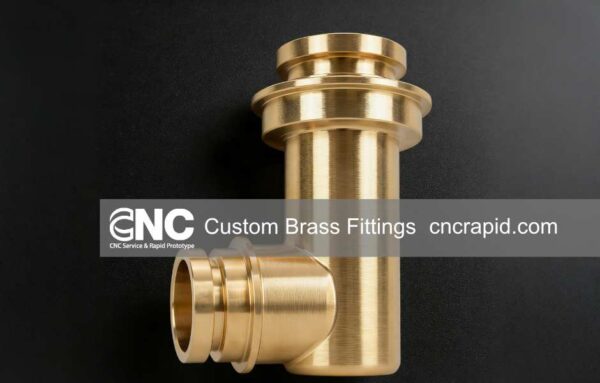

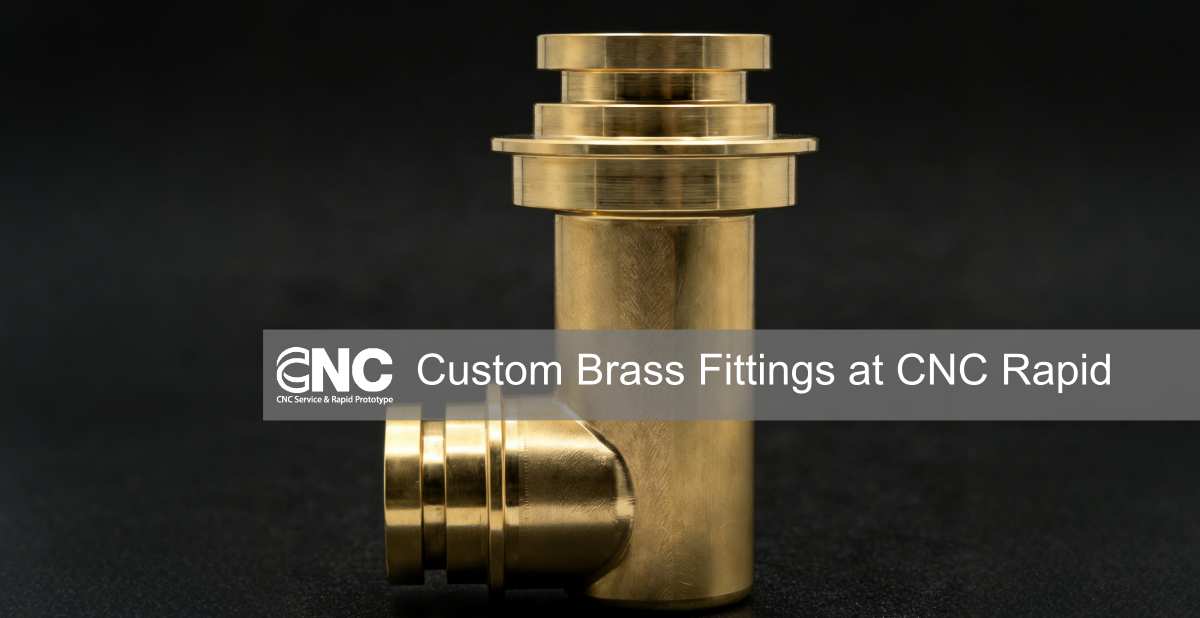

Let’s examine the details of a precision Brass Elbow Connector we recently manufactured.
Why Choose Brass for Fluid Components?
The part shown above is machined from high-grade C36000 Free-Cutting Brass. This material is the gold standard for fluid control components for several reasons:
- Corrosion Resistance: Brass naturally resists rust and corrosion from water, oil, and gas, making it far more durable than standard steel.
- Machinability: We can machine brass at high speeds while maintaining an incredible surface finish. As you can see in the photo, the turned surface is smooth and burr-free.
- Thermal Conductivity: For HVAC applications, brass handles temperature changes excellently without becoming brittle.
The Secret to Leak-Proof Seals: Precision Grooving
The most critical feature of this elbow connector is the series of grooves cut into the cylindrical ends. These are O-Ring Sealing Grooves.
- Tight Tolerances: For an O-ring to seal correctly under high pressure, the groove depth and width must be machined to extremely tight tolerances (often +/- 0.02mm). If the groove is too shallow, the O-ring won’t compress; if it’s too deep, the fluid will bypass the seal.
- Surface Finish: The bottom surface of the groove must be perfectly smooth. Any tool marks or scratches here could create a path for fluid to leak or damage the rubber seal during assembly. Our precision CNC turning ensures a mirror-like finish in these critical areas.
Complex Geometry: The 90-Degree Challenge
Standard turning is easy, but manufacturing a precise L-Shaped (90-degree) Elbow from a solid piece requires advanced machining capabilities.
- Turn-Mill Capability: We use advanced multi-axis CNC machines (or specialized fixtures) to ensure that the two ends of the elbow are perfectly perpendicular (90 degrees) to each other.
- Smooth Flow Path: The internal intersection where the two bores meet is carefully deburred to ensure smooth fluid flow and prevent turbulence or pressure drops inside the connector.
Get Your Custom Brass Parts Made
Whether you need specialized valve bodies, custom adapters, or high-pressure manifolds, CNC Rapid delivers precision brass components that perform.
Stop settling for standard parts that don’t fit.
Upload your 3D CAD files (STEP/IGES) today. Our team will review your design and provide a competitive quote for your custom brass manufacturing needs.
