Project Description
In the rapidly advancing fields of 5G telecommunications, satellite broadcasting, and aerospace radar, signal integrity is everything. High-frequency electronic components must be completely isolated to prevent cross-talk and electromagnetic interference (EMI).
To achieve this, engineers rely on complex, heavy-duty CNC Machined RF Housings. At CNC Rapid, we specialize in manufacturing these intricate microwave cavities from solid aluminum blocks, delivering the extreme precision required for next-generation communication networks.
Let’s take an inside look at the advanced CNC milling techniques required to produce a high-performance RF chassis.
The Labyrinth: Precision Cavities for EMI/RFI Shielding
The most defining feature of an RF housing is its internal geometry. As seen in the photo above, the floor of the main cavity features a complex, maze-like pattern of structural dividers and channels.
- Signal Isolation: These intricate “labyrinth” channels are designed to house specific high-frequency micro-components. The machined walls act as physical barriers, creating isolated microwave cavities that prevent Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) between different circuits.
- Micro-Milling Mastery: Machining these narrow, deep channels requires small-diameter end mills operating at extremely high RPMs. We strictly control our feed rates to ensure the vertical walls are perfectly straight and the internal corner radii meet the exact CAD specifications, ensuring your conductive gaskets fit perfectly.
Deep Pocket Milling & Stress Management

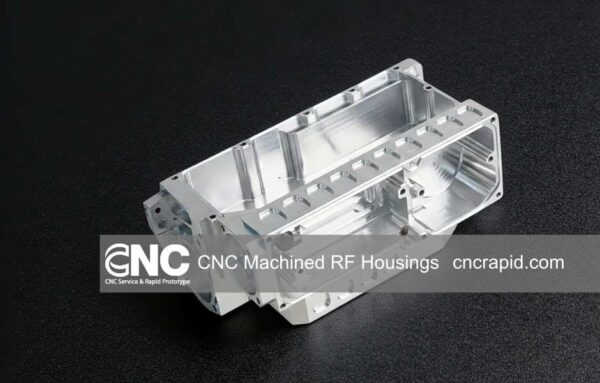

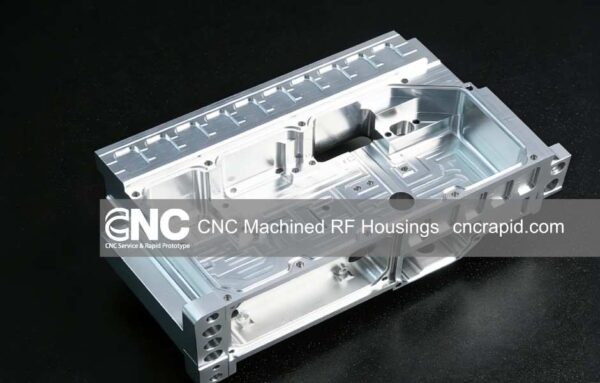

Manufacturing a CNC Machined RF Housing often means removing over 80% of the original aluminum block’s weight. The deep pockets shown in this chassis present a significant manufacturing challenge.
- Preventing Deformation: When you mill deep cavities into a solid block of Aluminum 6061 or 7075, the internal material stress is released, which can cause the entire chassis to warp. At CNC Rapid, we utilize advanced roughing techniques and multi-step stress-relief machining strategies to guarantee the final enclosure remains perfectly flat and dimensionally stable.
- Flawless Mating Surfaces: For an RF enclosure to function correctly, the top sealing lid must make continuous electrical contact with the housing walls. Our high-precision milling ensures the top edges of all cavity walls are perfectly co-planar, eliminating any microscopic gaps where signal leakage could occur.
Integrated Thermal Management (Cooling Fins)
High-power RF amplifiers and telecommunication transmitters generate a massive amount of heat. If this heat is not dissipated quickly, the electronic components will fail.
Take a look at the exterior of the housing. Instead of bolting on a separate heatsink, we have CNC machined the cooling fins directly into the exterior walls of the chassis.
- Superior Heat Transfer: By machining the fins from the same solid block as the internal cavities, there is zero thermal resistance. Heat transfers instantly from the internal PCB mounting points directly to the external fins, providing maximum cooling efficiency for your high-power equipment.
Partner with CNC Rapid for Telecom Machining
When designing infrastructure for 5G networks or military-grade communications, you cannot compromise on your hardware. You need a manufacturing partner who understands the strict tolerances and complex geometries of Microwave and RF Cavities.
Ready to manufacture your custom RF enclosure?
Upload your 3D CAD files (STEP/IGES) today. Our engineering team will review your deep-pocket designs and provide a highly competitive quote for rapid prototyping or high-volume production.
