Project Description
In advanced industries like aerospace, UAV (drone) development, and high-performance robotics, every single gram matters. Engineers face a constant battle: how do you remove the maximum amount of weight from a metal part without destroying its structural strength?
At CNC Rapid, we solve this engineering challenge through advanced Lightweight CNC Machining. By utilizing complex tool paths and specialized milling strategies, we transform solid aluminum blocks into incredibly light, ultra-rigid skeletal structures.
Let’s explore a recent custom aluminum component that perfectly demonstrates the ultimate weight-saving technique.
The Honeycomb Solution: Maximum Stiffness, Minimum Weight

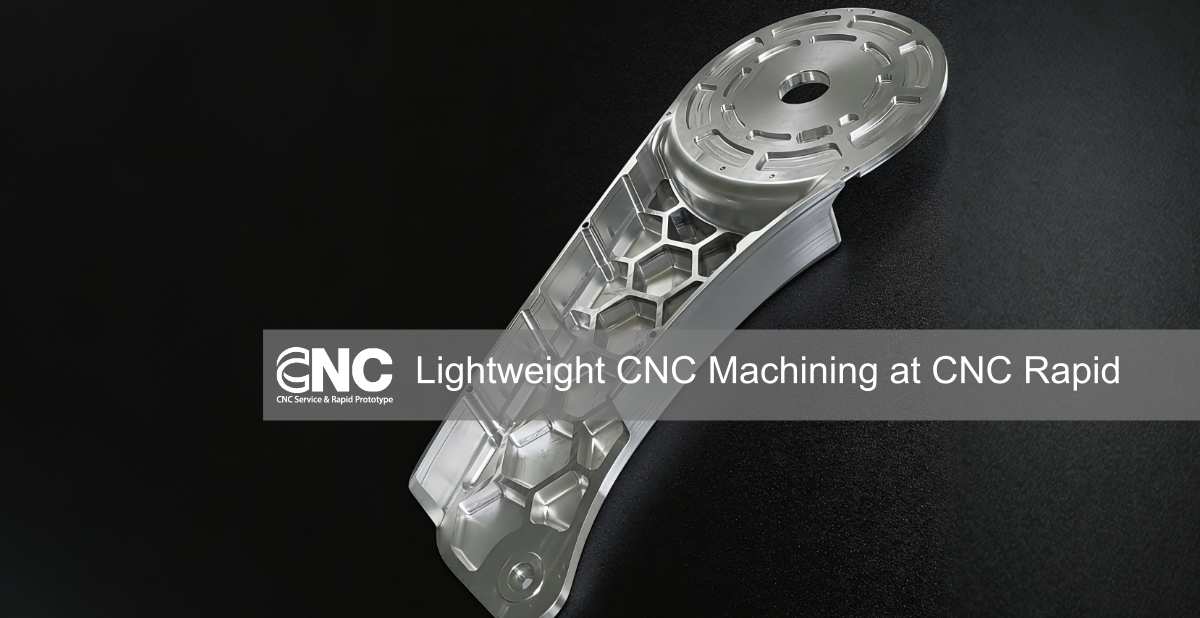

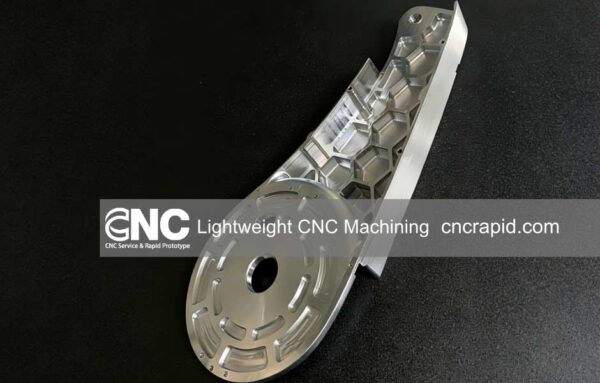

Look at the back of the component in the photo above. Instead of machining one large, simple pocket to remove weight, we milled a highly intricate Honeycomb (Hexagonal) Structure.
In aerospace engineering, this is often related to “Isogrid” design principles.
- Superior Strength-to-Weight Ratio: The hexagonal ribs distribute mechanical stress evenly across the entire part. This allows the component to handle extreme bending and twisting forces while weighing only a fraction of a solid block.
- Precision Pocketing: Machining dozens of identical, deep hexagonal pockets requires absolute precision. Even the slightest tool wear or machine inaccuracy would lead to uneven wall thicknesses and weak points.
Overcoming Thin-Wall Machining Challenges
The most difficult aspect of Lightweight CNC Machining is dealing with the extremely thin walls left behind after the pockets are milled.
When you remove 80% or more of an aluminum block’s material, two major problems occur:
- Material Warping: Releasing the internal stress of the raw metal can cause the part to bend like a potato chip. We use multi-step roughing and stress-relief strategies to ensure the final part remains perfectly dimensionally stable.
- Machining Chatter: Thin walls vibrate heavily against the cutting tool. To prevent this “chatter” and avoid breaking the delicate ribs, our programmers use high-speed dynamic milling toolpaths. This allows the cutter to gently slice away the aluminum, leaving the ultra-thin walls perfectly intact and smooth.
Flawless 3D Contouring and Surface Finish

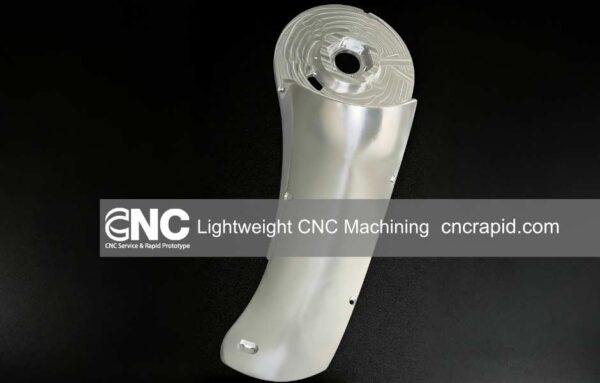

Now, flip the part over. While the back is a complex maze of structural ribs, the front features a seamless, sweeping aerodynamic curve.
- Advanced Multi-Axis Milling: Achieving this perfectly smooth 3D contoured surface requires precise simultaneous multi-axis CNC milling. The machine tool smoothly follows the organic curvature of the design without leaving harsh stepping marks.
- Premium As-Machined Finish: A superior surface finish isn’t just about aesthetics; it improves the fatigue life of the part by eliminating micro-scratches where cracks could form. The pristine “As-Machined” finish you see here provides the perfect foundation for final treatments like custom anodizing.
Ready to Lightweight Your Next Project?
Don’t let manufacturing limitations force you to compromise on your high-performance designs. Whether you are building a lightweight drone frame, a robotic exoskeleton, or aerospace components, CNC Rapid has the technology and expertise to bring your most aggressive lightweight designs to life.
Upload your 3D CAD files (STEP/IGES) today. Our engineering team will review your thin-wall designs for manufacturability (DFM) and provide a fast, competitive quote.
