Project Description

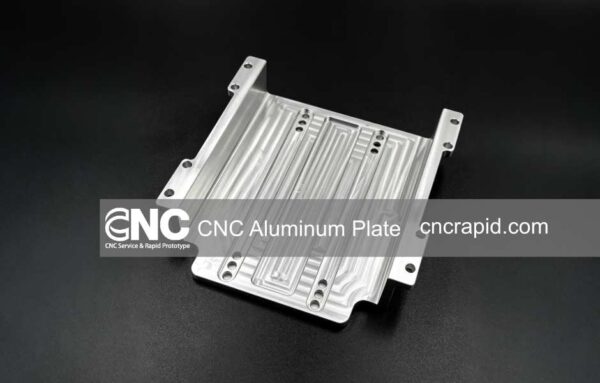

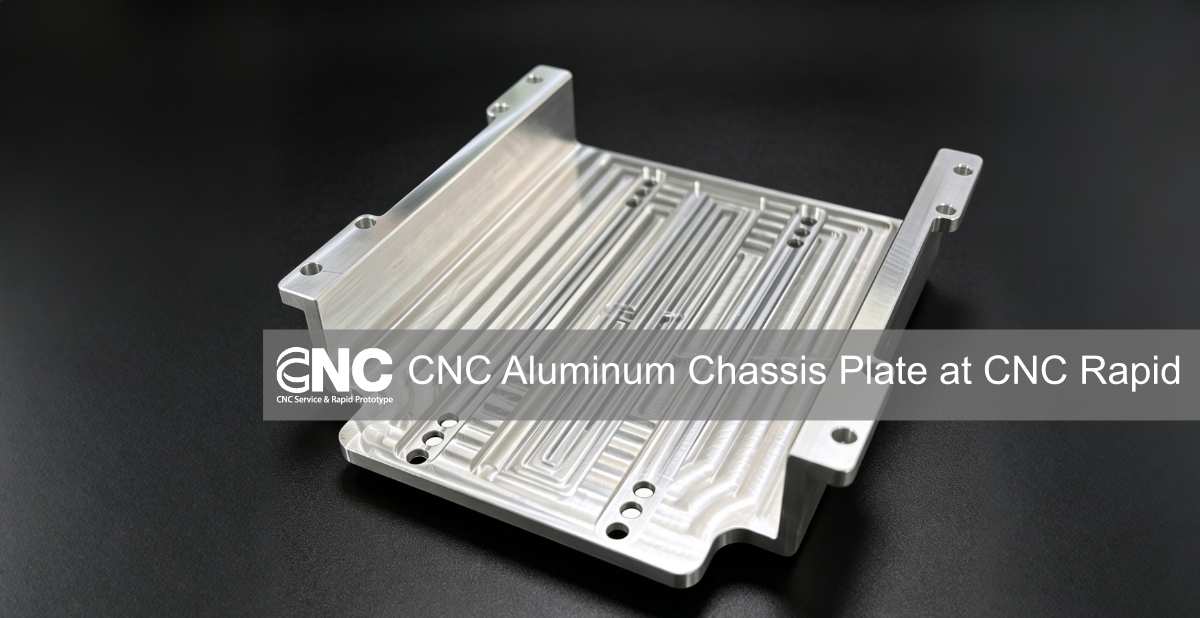

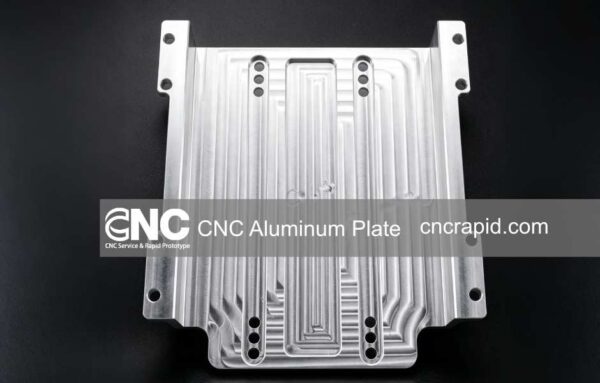

Not every great part is a complex one. Sometimes the smart move is a clean, straightforward design that machines fast and repeats perfectly — and that’s exactly what this part is. Produced at CNC Rapid from aluminum as a production run of around 1,000 parts, this structural plate carries ribbed lightening pockets and mounting features, and comes off the machine in a clean as-machined finish.
Best of all, it’s fully machined in just two setups — a simple, efficient process that makes it ideal for cost-effective, high-volume production exactly like this.
Why Simple Is a Strength
A well-designed, easy-to-machine part isn’t a compromise — it’s an advantage. When a component like this only needs two operations to complete, several good things follow, and they add up fast across a run of a thousand parts:
- Faster turnaround — fewer setups means shorter cycle times and quicker delivery.
- Lower cost per part — an efficient process keeps machining time down, which keeps your unit price competitive, especially at volume.
- Rock-solid repeatability — fewer operations means fewer variables, so every part comes out the same.
- Reliable scaling — a streamlined two-op process moves smoothly from a first batch to full production.
For structural parts you need in quantity, a clean design machined in a couple of setups is often the best value you can get.
A Practical, Well-Featured Part
Simple to produce doesn’t mean plain. This structural plate still packs the features a real component needs:

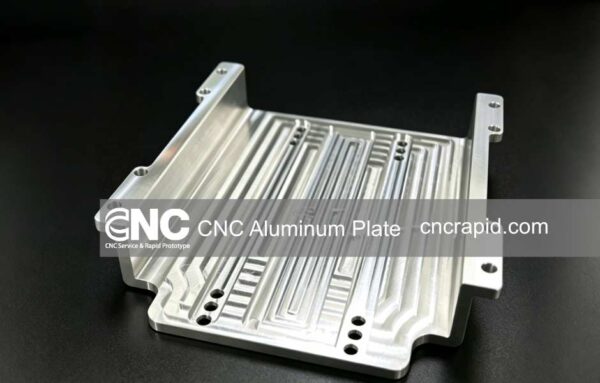

- Ribbed lightening pockets that cut weight while keeping the plate rigid.
- Mounting feet and bolt holes positioned accurately so the part drops straight into assembly.
- Clean, consistent surfaces straight off the cutter — no secondary finishing required.
It’s a good reminder that thoughtful, manufacturable design and precision results go hand in hand.
Why Aluminum?
Aluminum is a natural fit for a structural plate: light, rigid, and highly machinable, it lets you pocket away weight while keeping the part strong. Its excellent machinability is exactly what makes a fast, two-setup process possible — clean features and surfaces, produced efficiently, at a competitive cost across the whole run.
Ideal Applications
A structural plate like this is a natural fit for brackets, base plates, and mounting panels needed in quantity, including:
- Equipment and enclosure mounting
- Robotics and automation platforms
- Electronics and instrumentation supports
- Machinery and structural assemblies
- Any product needing lightweight, repeatable precision plates at volume
Get a Quote on Your Next Volume Run
Whether your part is simple or complex, CNC Rapid machines precision components in aluminum and 50+ other materials — with efficient processes and consistent quality that scale from prototype to full production.
Have a production part in mind? Upload your files to CNC Rapid and we’ll get you a fast, detailed quote.
