Project Description
Machining one good part is one thing. Machining hundreds of them — every single one to the same tight specification — is a different challenge entirely. This precision aluminum flange housing was produced at CNC Rapid as a high-volume run, with a clean as-machined finish and the kind of part-to-part consistency that production customers depend on.
For any volume order, the real question isn’t “can you make it?” — it’s “can you make it the same, every time?” That’s exactly what this project demanded, and delivered.
A Deceptively Complex Part

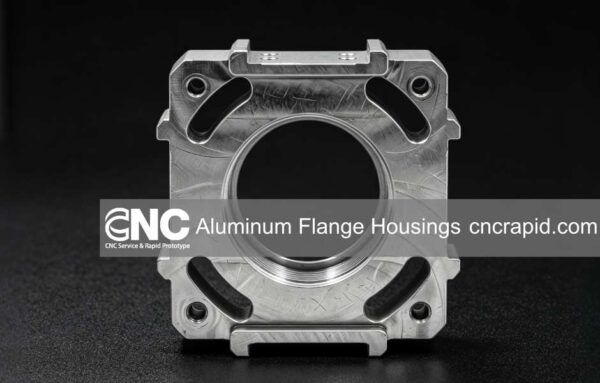

At a glance it’s a compact square housing — but it packs several features that each have to be right, and right consistently across the batch:

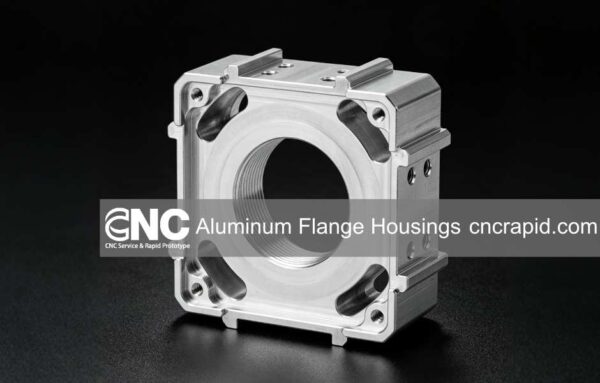

- Large internally threaded bore at the center, where thread quality and consistency directly affect how the mating part seats.
- Curved lightening pockets at each corner, reducing weight while keeping the structure rigid and clean.

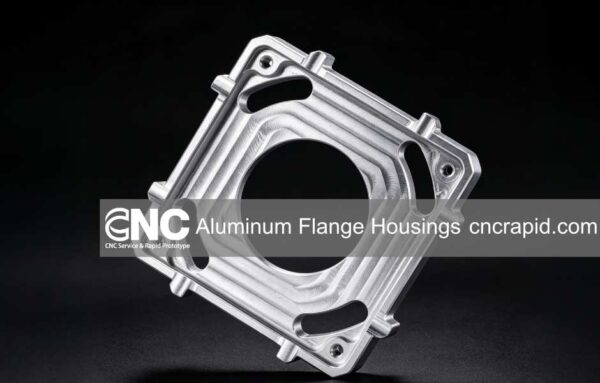

- Stepped, concentric back pockets for locating and weight reduction, machined to consistent depths.
- A raised side boss with threaded holes, adding another machining orientation to the part.
- Multiple threaded and precision holes across several faces, each holding position and depth from part to part.
Every one of these features has to land in the same place, at the same size, on part number 1 and part number 500 alike. That’s where disciplined process control earns its keep.
What Makes Volume Production Work
Repeatable quality at volume doesn’t happen by accident. It comes from getting the setup right before the run starts and controlling it all the way through:
- Stable, repeatable workholding so every part is located identically, setup after setup.
- Tool management and wear control to keep threads, pockets, and hole sizes consistent from the first part to the last.
- In-process inspection to catch drift early and hold tolerances across the entire batch.
- Optimized cycle times that keep the run efficient and cost-effective without sacrificing quality.
The result is a run of parts that are effectively interchangeable — which is exactly what an assembly line or a downstream customer needs.

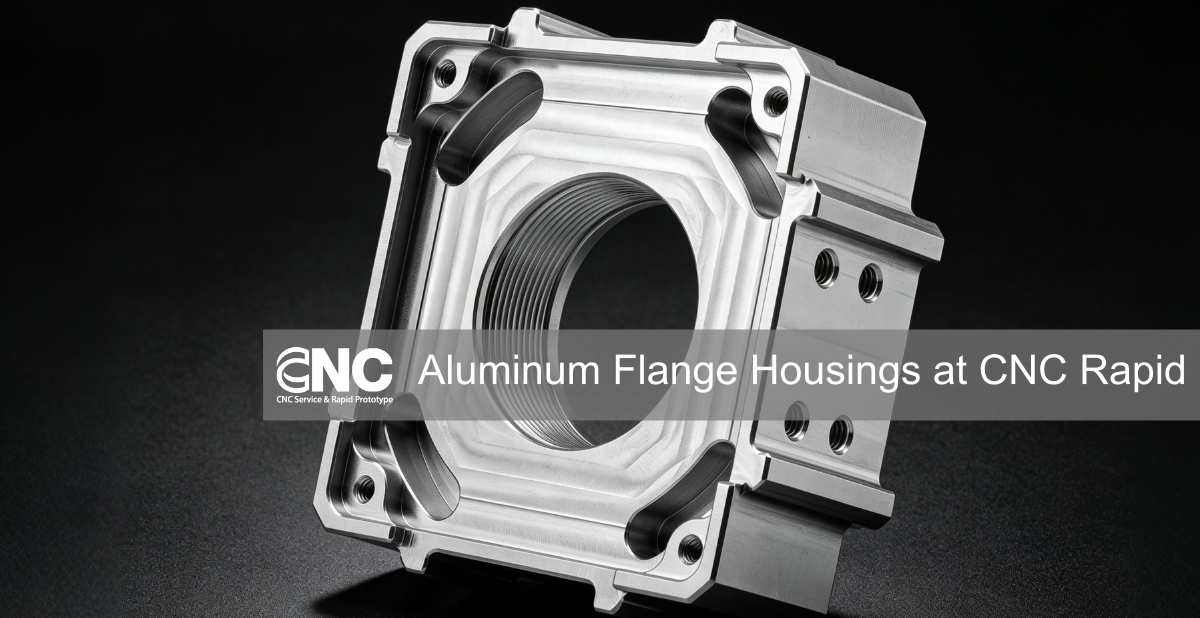

Clean, As-Machined Finish
These housings are presented in their natural as-machined state — no anodizing or plating — so the surface quality comes straight from the cutter. Consistent finishes, crisp edges, and clean threads across every part in the run reflect sharp tooling and well-tuned machining, not post-processing cover-up.
Ideal Applications
A precision flange housing like this is a natural fit for bearing mounts, motor and actuator housings, and structural interfaces produced at volume, including:
- Motion, drive, and transmission assemblies
- Robotics and industrial automation
- Pumps, actuators, and rotating equipment
- Electronics and instrumentation enclosures
- Any product needing consistent, repeatable precision parts in quantity
Get a Quote on Your Next Volume Run
From prototypes to full production runs, CNC Rapid delivers precision components in aluminum and 50+ other materials — with the workholding, inspection, and process control needed to hold quality across the entire batch.
Have a production part in mind? Upload your files to CNC Rapid and we’ll get you a fast, detailed quote.
