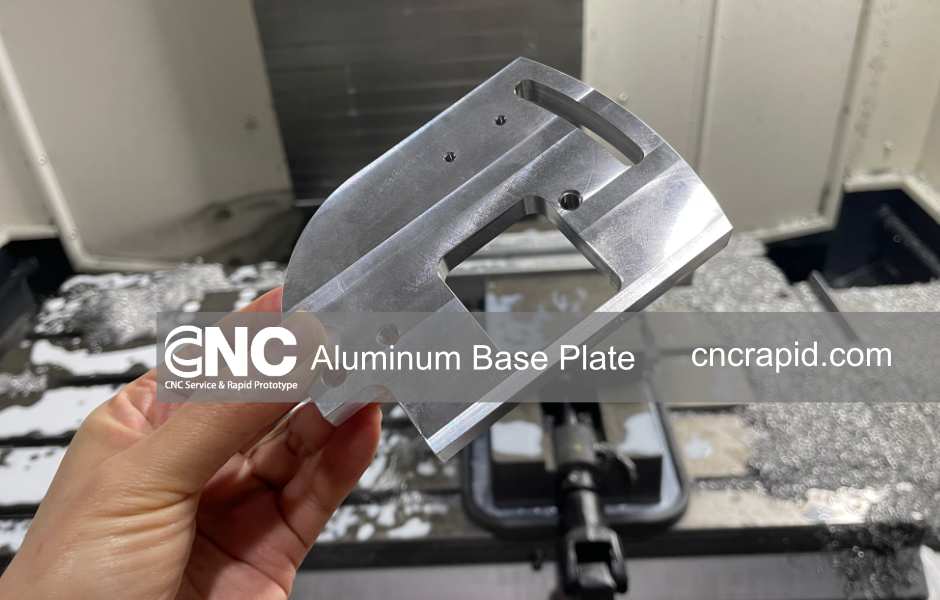

When an electronic design needs both mechanical rigidity and efficient heat spreading, a aluminum base plate often offers the lightest and most straightforward answer. Instead of relying on fragile standoffs or heavy steel backers, a flat plate milled from 6061-T6—or another high-grade alloy—supports the board, keeps pad heights consistent, and removes heat from power components even inside tight enclosures.
Key Advantages of Aluminum Base Plate
- Lightweight stiffness. A three-millimetre plate adds only a few dozen grams to a typical 100 × 100 mm board, yet it cuts flex by more than two-thirds.
- Superior flatness. Precision fly-cutting can hold fifty microns or better across the entire diagonal, eliminating bowed PCBs and solder-joint fatigue.
- Integrated thermal path. With thermal conductivity around 205 W/m·K, aluminum spreads hotspots without the need for a separate heatsink.
- Clean, corrosion-resistant finish. Clear or black anodizing seals the surface and blends with most product aesthetics.
L-shaped aluminum mounting bracket
Design Tips for a Rock-Solid PCB
- Keep it planar. Treat the plate as a single datum; avoid passing pockets under fine-pitch BGA or QFN pads.
- Relieve solder joints. A subtle 0.2 to 0.3 mm step beneath via arrays prevents solder bridging.
- Countersink from below. Through-bolts that clamp the PCB, any spacers, and the base plate together minimise stack-up error.
- Use thermal vias. Route high-power components directly to the plate through dense via grids to maximise heat flow.
- Call out anodizing early. The anodic layer adds about eight microns—note this so mating bosses still fit snugly.
How CNC Rapid Manufactures Your Aluminum Base Plate
First we run a DFM review of your STEP, checking for clashes, flatness, and cutter access. Next, high-speed machining holds ± 0.02 mm on critical bosses while vacuum fixtures prevent plate warp. Burrs are removed, edges receive a 0.2 mm break, and surface roughness is kept at Ra ≤ 0.8 µm. We then apply the specified finish—clear anodize, black hard-coat, or chem-film—before a full inspection confirms flatness and hole positions. Finally, we package the parts in clean-room film ready for assembly.
Need tighter results? Ask about our post-machining grind or lap service that achieves sub-ten-micron flatness for optics and laser platforms.
Ready to Get Started?
Email us your STEP model and drawing and note the material grade, thickness, flatness target, surface finish, quantity, and required ship date. Our engineers will respond within twelve hours with a firm quote and any DFM suggestions.
By choosing a precisely machined aluminum base plate from CNC Rapid, you lock in mechanical stability, thermal reliability, and a cleaner production flow—all in one elegant part. Let’s build something solid together.
