This part supports and guides the piston rod, carries the dust wiper and primary seals, and bolts to the cylinder tube via a flanged pattern. Below is a practical overview of material choice, machining process, tolerances, inspection, and finishing options at CNC Rapid.

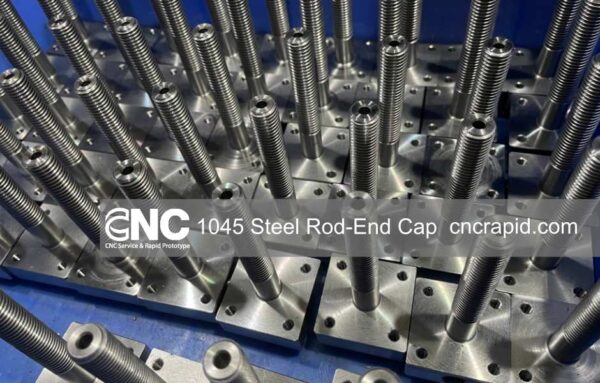

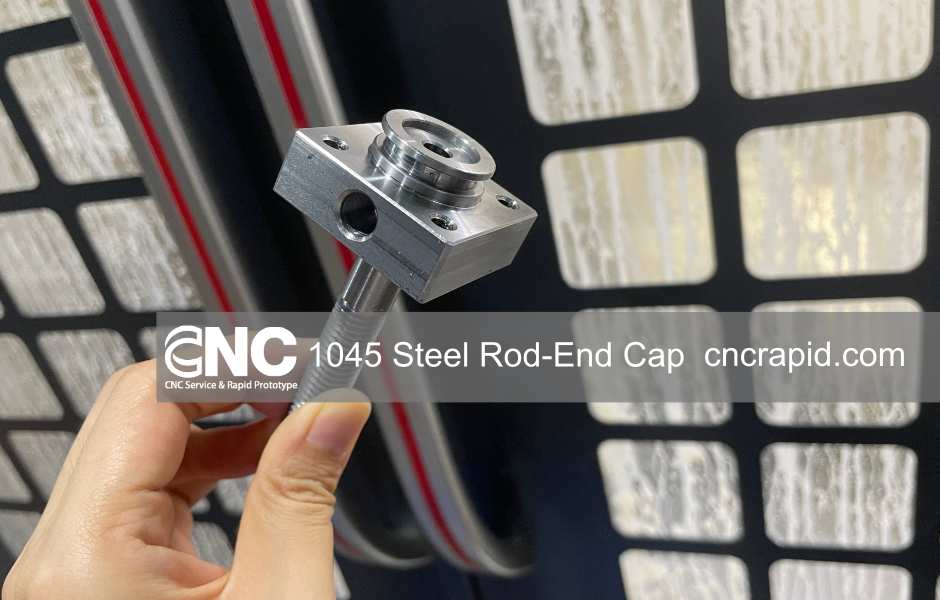

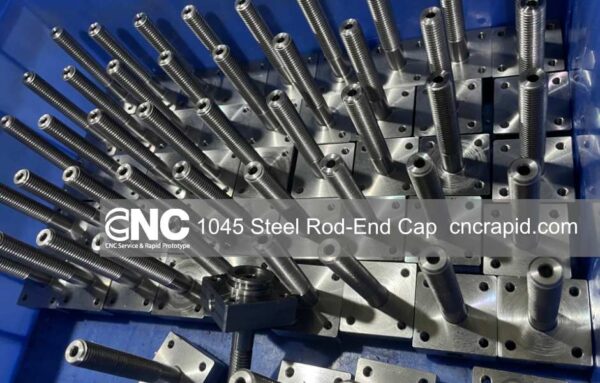

1045 Steel Rod-End Cap CNC Machined Part

What is a rod‑end cap

A rod‑end cap is the rod‑side end cover of a hydraulic cylinder. Typical features include:

  • Multi‑step rod bore to seat the wiper, rod seal, and bearing/guide ring.
  • Location rabbet / pilot to align with the cylinder tube.
  • Bolt pattern or clamp band connection to the tube/flange.
  • One or more ports (e.g., BSPP, NPT, metric straight) and auxiliary holes for plugs or sensors.

1045 Steel Rod-End Cap CNC Machined Part

Why choose 1045 steel

  • Balanced strength & machinability: Medium carbon steel with good toughness; machines well on CNC lathes/mills.
  • Cost‑effective: Lower cost than alloy steels while meeting many hydraulic duty requirements.
  • Heat‑treatable: Can be quenched & tempered (typ. ~28–34 HRC) or induction hardened locally on wear surfaces.
  • Sealing compatibility: Rod bore and groove surfaces finish nicely for O‑rings / U‑seals with the right tooling and feeds.

Precision CNC Machined 1045 Steel Components

Frequently asked questions

Q1: Is 1045 good enough for heavy‑duty cylinders?
Yes for many applications, especially with Q&T and proper finishing. For very high pressure or corrosive media, we may recommend alloy steels or stainless.

Q2: What tolerance can you hold on the rod bore?
With finish boring/honing we typically hold ±0.01–0.02 mm on small/medium sizes; geometry and fixturing may affect the final call.

Q3: Can you machine the wiper, seal, and bearing grooves together?
Yes. Please send the seal datasheets or groove tables; we will match the tool radii and edge breaks accordingly.

Q4: Do you provide pressure testing?
Available on request. We can hydro or air‑decay test to a specified value and time, and record results in the inspection report.

Q5: What drawings/files do you accept?
STEP/IGES + 2D PDF with tolerances and thread/port specs. If you only have 3D, we can help derive a 2D print for approval.
