At CNC Rapid, the parts that look simple at a glance are often the ones that demand the most from the machine. We recently produced a batch of custom CNC machined aluminum bracket featuring a sweeping curved cradle, integrated mounting bosses, and a transition that blends a flat mounting face into a smooth semicircular channel. Here is a close look at how the part went from a block of aluminum to a finished, black anodized component.
The Part and the Design Challenge
The bracket is a single-piece aluminum component that combines several features that are tricky to hold together on one part: a precise semicircular cradle sized to seat a shaft, a flat flanged mounting face, countersunk and tapped holes for assembly, and a contoured chute on one end. The curved inner surface has to stay concentric and smooth so the mating part seats correctly, while the outer walls are kept thin to save weight.
Machining a part like this is less about removing material and more about controlling it. Thin walls want to flex and chatter under cutting forces, and the curved profiles leave very little flat surface to grip during the later operations. Getting a clean result comes down to fixturing strategy, the right cutting tools, and the right sequence of operations.
Why Aluminum
For this project, aluminum was the obvious choice. Aluminum gives an excellent strength-to-weight ratio, machines cleanly at high speed, dissipates heat well, and accepts anodizing beautifully, which makes it a go-to material for brackets, housings, and structural hardware across the automotive, robotics, electronics, and industrial-equipment sectors.
Choosing aluminum also kept the part cost-effective. Faster cutting speeds and shorter cycle times mean we can deliver both prototype quantities and small production runs without expensive tooling.
The Machining Process

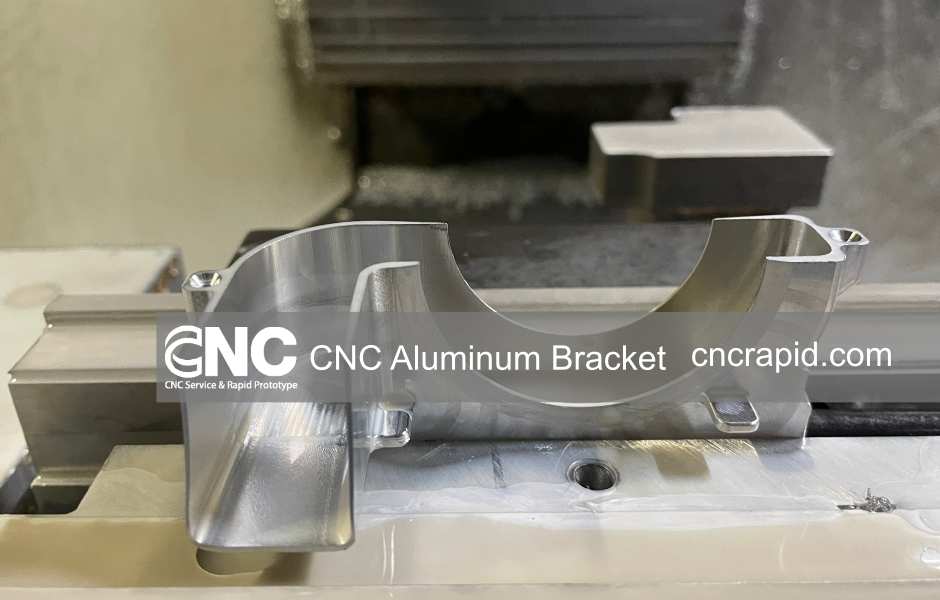

We produced the custom CNC machined aluminum bracket using multi-step CNC milling. After squaring up the billet, we roughed out the bulk geometry, then ran finishing passes on the curved cradle and contoured faces to bring the surface down to its final smooth finish. The part was re-fixtured for the secondary operations so we could machine the mounting face, the countersunk holes, and the tapped features from the correct orientations.
The compound curves and the blended transitions are what make this part interesting to manufacture. Careful toolpath planning kept the thin walls from deflecting and left a consistent, mark-minimized surface across the whole part.
Tolerances and Inspection
The bracket was held to ±0.05 mm. As standard, CNC Rapid works to ISO 2768-f, with general tolerances of ±0.1 mm, and we can hold tighter tolerances down to ±0.01 mm on critical features when a drawing calls for it.
Every part is inspected before it ships. Critical dimensions, the cradle diameter, and hole positions are verified with calipers / micrometers, so each unit in the batch matches the others and matches the drawing.
Surface Finishing: Matte Black Anodizing

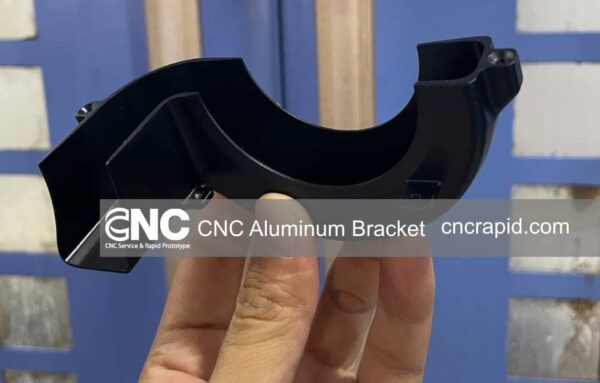

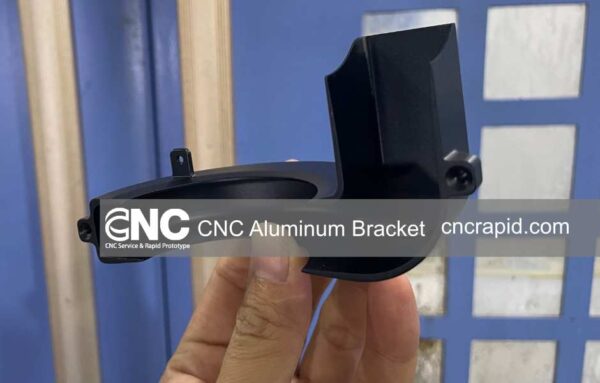

Straight off the machine, the bracket has the bright, raw look of cut aluminum. To finish it, the part was bead blasted and then Type II anodized to a matte black. Anodizing does more than change the color: it grows a hard, corrosion-resistant oxide layer into the surface, improves wear resistance, and gives the part a clean, uniform, professional appearance. The before-and-after between the raw billet part and the finished black component shows just how much the finish elevates the final product.
We offer a full range of finishes beyond black anodizing, including as-machined, bead blasted, Type III hard anodizing, brushed, powder coating, and black chrome plating, so the surface can be matched to the part’s environment and to your branding.
Applications
A curved aluminum bracket like this fits a wide range of uses, from mounting and guiding a roller. CNC Rapid machines parts like these for the automotive, consumer electronics, robotics and automation, industrial machinery, and medical device industries, for everything from a single prototype to low-volume production.
